PVC Lath

The Lath splash fill is a lightweight PVC replacement for wooden lath in crossflow or counterflow towers. It features a reinforcing rib for strength and is highly resistant to chemicals and biological attack.

Splash Bar Fill Specifications

English Metric
ProductsHeight
inches
Width
inches
Length
inches
Weight Lbs/ftMaterial Thickness
mils
Recommended Support Span Ft

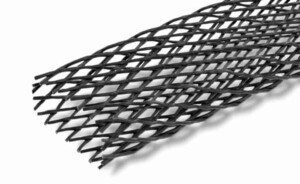

SpiraBar 4" Rectangle
1.8
3.9
4ft - 14ft
6" increments
0.14
N/A
2
SpiraBar 4" Long Span
2.5
3.9
4ft - 14ft 6"
0.15
N/A
3.5

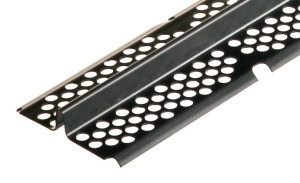

Kelly Bar
0.86
4.25
Extruded to any length
0.13
50
3
Kelly Bar HD
1.33
4.25
Extruded to any length
0.24
80
4

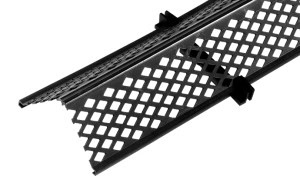

V Bar
1.68
3.75
Extruded to any length
0.12
50
2
V Bar HD
1.68
3.75
Extruded to any length
0.19
80
3

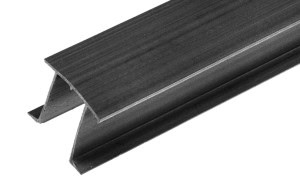

Pi Bar
1.53
1.75
Extruded to any length
0.22
60
5

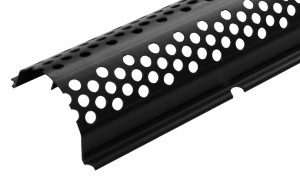

Para Bar
1.78
4.16
Extruded to any length
0.152
50
3
Para Bar LS
2.29
4.16
Extruded to any length
0.182
50
5
PVC Lath
0.43
1.5
Extruded to any length
0.13
50
2
ProductsHeight
mm
Width
mm
Length
mm
Weight Kg/mMaterial Thickness
mm
Recommended Support Span
mm
SpiraBar 4" Rectangle
46
99
1219 - 4267
0.21
N/A
610
SpiraBar 4" Long Span
64
99
1219 - 4420
0.22
N/A
1067
Kelly Bar
22
108
Extruded to any length
0.19
1.3
915
Kelly Bar HD
34
108
Extruded to any length
0.36
2.0
1219
V Bar
43
95
Extruded to any length
0.18
1.3
610
V Bar HD
43
95
Extruded to any length
0.28
2.0
914
Pi Bar
39
44
Extruded to any length
0.33
1.52
1524
Para Bar
45
106
Extruded to any length
0.23
1.3
914
Para Bar LS
58
106
Extruded to any length
0.27
1.3
1524
PVC Lath
11
38
Extruded to any length
0.19
1.3
610
