The Evolution of Collector Monitoring Systems

The vast majority of chain and flight collectors in operation throughout the world do not have any form of monitoring system installed to protect against operational failure. Traditional safety devices consist of a shear pin sprocket device, with a limit switch, designed to protect the drive system if a load or torque exceeds the working load of the drive chain; in the event that this occurs, the shear pin will break, the limit switch will be activated, and the drive motor is shut down. This process will typically protect the drive chain and drive motor from failure. When the shear pin breaks, the clarifier is drained, the cause of the overload is established and corrected, a new shear pin is installed, and the collector is placed back in operation.

Alternate mechanical or electrical torque monitoring systems can be supplied at additional cost that, in the event of an overload, can be reset after correcting the cause of the overload. These systems do not require the manual replacement of the shear pin or draining of the basin but are typically not cost effective.

Traditional Monitoring Systems
In an attempt to eliminate collector systems crashes, a number of different systems have been tried to monitor flight motion and shut down the collector system if the collector flight is misaligned or no flight is seen after a certain time limit. More recently, one system has been introduced to shut down the collector system if the “notched” collector chain tries to jump a sprocket tooth. These systems have usually been disconnected due to nuisance failures caused by sensor failure or limited sensor range, flight target failure or corrosion, field installation or monitoring location errors, and excessive tooth jumping of “notched” collector chain.

Where flight monitoring is used to shut down the collector system, if a flight is not seen within a set time period, considerable time can elapse and considerable failure can occur before this situation is monitored, taking into consideration wide flight spacing and slow collector speed. In addition, if flights are not evenly spaced, nuisance shut downs can occur.

SmartGuard Sprocket Motion and Flight Misalignment Monitoring Systems
Brentwood’s Polychem brand developed the SmartGuard system to improve upon traditional monitoring systems and reduce potential system crashes. SmartGuard is a cost-effective approach to safety that can be installed both in new installations or as a retrofit to existing installations. It includes two separate and distinct monitoring zones for full system protection: Sprocket Motion Monitoring (SMM) and Flight Misalignment Monitoring (FMM).

Sprocket Motion Monitoring

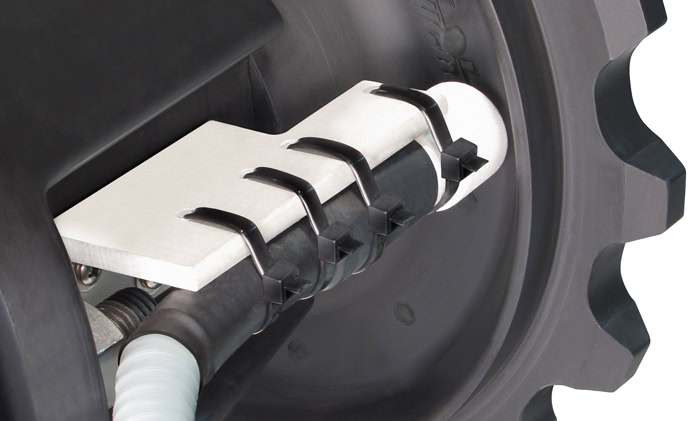

polychem_component_smartguard_sprocket-monitorThe SmartGuard SMM system checks regular motion of both lower, read idler sprockets where the collector chain is in tension. Under normal operation, sprocket motion will be uniform, providing defined, repeatable monitoring locations that eliminate nuisance failures caused by measuring motion along the upper return rail or other non-fixed monitoring locations.

As each lower rear idler rotates (caused by chain movement), the sensor detects the motion of the magnets embedded in the sprocket as they pass the sensor, sending a signal to the control panel where the data is monitored by a programmable logic controller (PLC). If the timing between each magnet passing the sensor, on either side of the collector, is within preset time limits, the sprocket will be deemed in motion and the system will continue to run. If the time differential is beyond the preset time limit, the sprocket will be deemed not in motion, the collector system will shut down, and the control panel will show that no motion has occurred.

The PLC is programmed to indicate that no sprocket motion has occurred equivalent to 2.36 inches (60mm) of chain travel. This sensitivity will allow the collector system to shut down prior to chain, attachment link, or flight breakage.

polychem_component_smartguard_flight-monitorFlight Misalignment Monitoring
The SmartGuard FMM systems checks that flights are aligned properly as they pass the head shaft sprocket location. At this point, the flight is engaged on a sprocket tooth, on both sides of the head shaft, providing a defined, repeatable monitoring location. In addition, the use of a centralized non-metallic cam and sensor assembly – that is pre-assembled and tested – eliminates the need for metallic flight-mounted targets that are subject to corrosion, wear, debris collection, and field installation errors that can reduce sensing range and cause nuisance failures.

As each flight passes over the head shaft, the non-metallic cam assemblies are tripped and the encapsulated target passes a sensor. The sensor detects the motion of the target and sends a signal to the control panel where the data is monitored by a PLC. If the timing is the same for both cams or is within a preset time limit, the flight will be deemed to be aligned and the system will continue to run. If the time differential is beyond the preset limit, the flights will be deemed not aligned, the collector system will shut down, and the control panel will show that misalignment has occurred.

The PLC is programmed to compensate for field installation discrepancies and will indicate that a flight is misaligned when compensated misalignment is measured greater than 3 inches (75mm) of chain travel. In addition, the PLC self-calibrates for flight speed and can be programmed to shut down the system if no flight is seen within a pre-determined time limit.

SmartGuard Control Panels
Where sprocket motion monitoring and flight monitoring are provided, one control panel can be supplied to monitor both functions. Various add-on control panels can be supplied, as well, to interface with existing local collector panels and are capable of controlling up to four separate systems. Operating multiple collectors with one control panel reduces the average cost per system.
