Raspadores de vuelo Brentwood en un clarificador rectangular.

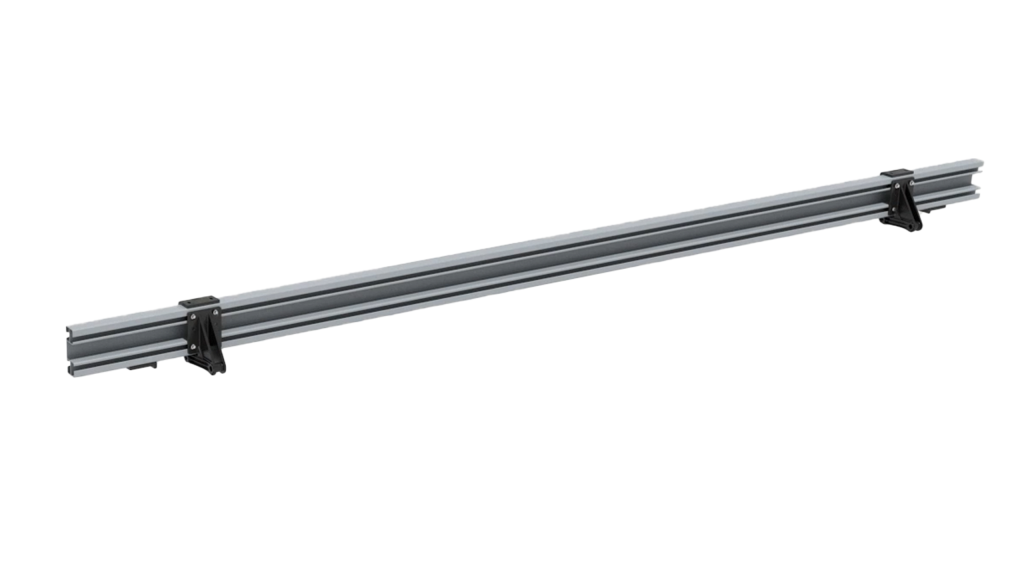

TrueSpan^™ Flight

The Polychem TrueSpan flight scraper streamlines installation and reduces downtime with a simple, standardized approach to flight assembly. Its configurable design allows for field adjustment without the need for premeasuring or fabrication, reducing installation complexity and potential for error. With in-stock availability and components designed to be cut to length on site, TrueSpan systems facilitate efficient assembly and support reliable, long-term operation in rectangular clarifiers.

Contáctenos

Beneficios

Adjustable centerlines to fit any tank condition

No premeasuring existing flights

No notching, flight drilling, or fab errors

Capability to offset floor wear shoes from chain

Smart stock lengths minimize scrap costs

Navigate Within Flights

Especificaciones

Sistema imperial Sistema métrico

Profile (in)	Depth (in)	Width (in)	Max Span Range (ft)	ExI Stiffness Factor (lb-in²)	Average Weight (lbs/ft)	Material	Max. Water Abs. @ 24hrs (%)
3x8	7.5	2.5	22 (4-Shaft System) - 24 (3-Shaft System)	9.31x10⁶	2.41	Glass Reinforced Isophthalic Polyester	0.6

Profile (mm)	Depth (mm)	Width (mm)	Max Span Range (m)	ExI Stiffness Factor (N-m²)	Average Weight (kg/m)	Material	Max. Water Abs. @ 24hrs (%)
76.2 x 230.1	190.5	63.5	6.7 (4-Shaft System) - 7.3 (3-Shaft System)	2.67x10⁴	3.59	Glass Reinforced Isophthalic Polyester	0.6

Un primer plano de maquinaria industrial con ruedas dentadas, ejes de cabeza y una cadena, todo ello mostrado en un esquema de color teñido de azul.

Animación del sistema

Conozca cómo se montan e instalan todos los componentes de un sistema Polychem TrueSpan.

Ver el vídeo

TrueSpan System Components

Ejes de cabeza ajustable TrueSpan

Ejes acodados ajustables TrueSpan

TrueSpan Soportes de pared ajustables

Ejes de cabeza ajustable TrueSpan

Nuestro eje de cabeza FRP TrueSpan presenta un diseño de tubo de extremo de chaveta común alargado que utiliza componentes de eje en stock para minimizar los plazos de diseño y entrega, simplificar el inventario y maximizar la capacidad de ajuste.

TrueSpan Head Shaft

Ejes acodados ajustables TrueSpan

Los tres tamaños configurables del eje acople ofrecen un ajuste in situ para adaptarse a las variaciones de la pared y a las consideraciones de la línea central del piñón.

TrueSpan Stub Shaft

TrueSpan Soportes de pared ajustables

TrueSpan wall brackets can be cut in the field to accommodate wall inconsistencies and to reduce lead times and customization. Three standard sizes are readily available, or custom lengths can be furnished.
